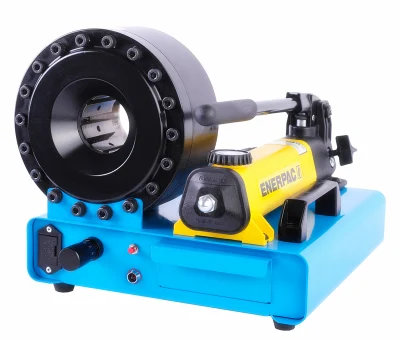

CE High Performance 1/4 - 1 Inch Light Weight 6-25mm Portable Manual Pipe Pressing Tool Hand Used Hydraulic Rubber Hose Crimping Machine for Sale

Looking for a portable manual pipe pressing tool? Our CE High Performance Hydraulic Rubber Hose Crimping Machine is the perfect solution. Buy direct from the factory!
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Detailed Photos
  • Company Profile
  • Production Show
  • Certifications
  • Customers and Reviews
  • Packaging & Shipping
  • FAQ
Overview

Basic Info.

Model NO.
JYC-P16
Condition
New
Customized
Customized
Automatic Grade
Automatic
Structure
Vertical
Product Name
Hose Crimping Machine
Core Components
Motor, Dies, Quick Change Tool
Voltage
220V/380V
Crimping Range
6-25mm
Crimping Force
100ton
System Prssure
31.5MPa
Transport Package
Wooden Case
Specification
565*480*400mm
Trademark
JYCFLEX
Origin
China
HS Code
8412210000
Production Capacity
50000 Pieces/Year

Packaging & Delivery

Package Size
565.00cm * 480.00cm * 400.00cm
Package Gross Weight
180.000kg
Lead Time
7 days (1 - 1 Pieces)
To be negotiated ( > 1 Pieces)

Product Description

CE High Performance 1/4 - 1 Inch Light Weight 6-25mm Portable Manual Pipe Pressing Tool Hand Used Hydraulic Rubber Hose Crimping Machine for Sale

Feature:

1.Nice appearance,Super light weight with stable performance, Low noise and easy to operate.

2.Imported brand-name oil pump with excellent accessories

3.The light is on when crimped to the pre-size

4.The hardness of the die base and die sets is high, to ensure the long service life.

5.Excellent quality and competitive price.

Product Description

SPECIFICATIONS of good factory price manual hydraulic hose crimping machine
Crimping Range 6mm to 51mm(1/4" to 1")
Quantity of dies 6 Sets
Accuracy 0.01mm
Volume of oil tank 5L
System Pressure 31.5Mpa
Dies number 14,16,19,23,27,31
The max open tolerance ±30mm
Machine Dimension 565*480*400mm
Net Weight 35kg

CE High Performance 1/4 - 1 Inch Light Weight 6-25mm Portable Manual Pipe Pressing Tool Hand Used Hydraulic Rubber Hose Crimping Machine for Sale

Main Features of 1/4" to 1" hose crimping machine rubber pipe making machine


1)Hydraulic cylinder and piston are all made of integrative precise steel casting. Comparing with welding technique, the hydro cylinder and piston will not transform when they are made. Pistons and moulds are driven to move by hydraulic power, so they have the advantage of stability and high speed, and avoid the mould locking phenomenon happens. The hydro cylinder locking systems is designed scientifically, so it is easy to withhold various anomalous connector bends.
2)Our crimping machine have two overflow valve. The high pressure overflow valve works when pipes are crimped. High pressure overflow valve could ensure the heavy pressure and high quality products, The low overflow valve works when molds are opened. Low pressure overflow valve could avoid oil seal bearing heavy pressure ,so as to increase its life period.
3)The base has two slope , to make sure that the pressure is homogeneous, the every part of the product has the same pressure, the lines of product have the equal gap, and there are no symmetry phenomenon,
4)Good quality alloy steel material and particular hear-treatment technique are used in order to ensure the permanent mechanical accuracy and life period of crimping machine. The life period of crimping machine has business with material, heat-treatment, mechanical processing, assembly and reasonable structure.

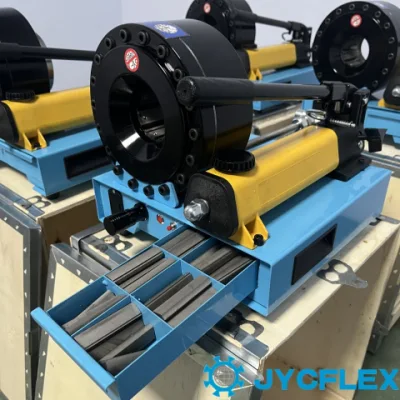

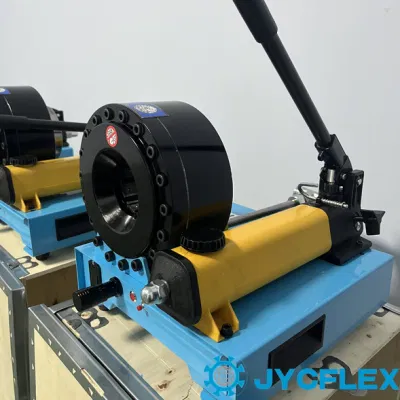

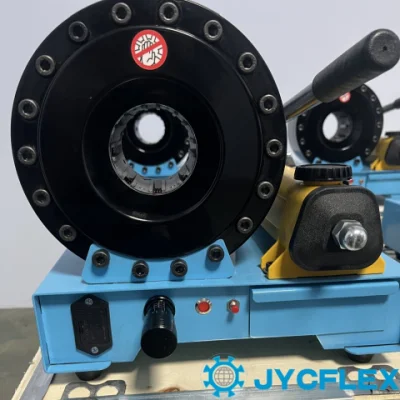

Detailed Photos



CE High Performance 1/4 - 1 Inch Light Weight 6-25mm Portable Manual Pipe Pressing Tool Hand Used Hydraulic Rubber Hose Crimping Machine for Sale
Crimping
hand

--

Use 40CrV,Hardness of the cylinder and front cover HRC59-63
Operating
Arm
--

We can crimp 1/4-1 inch hydraulic hose.We also have 1.1/2 inch and 2 inch manual machine,if you need,please contact with us.
CE High Performance 1/4 - 1 Inch Light Weight 6-25mm Portable Manual Pipe Pressing Tool Hand Used Hydraulic Rubber Hose Crimping Machine for Sale
CE High Performance 1/4 - 1 Inch Light Weight 6-25mm Portable Manual Pipe Pressing Tool Hand Used Hydraulic Rubber Hose Crimping Machine for Sale
Mould Dies
--

Die set with High Hardness of 59-63 HRC
No deformation after
Long Time Use
Micrometer
--

Limit valve.Rotary positioning,scale adjustment,high pressure
CE High Performance 1/4 - 1 Inch Light Weight 6-25mm Portable Manual Pipe Pressing Tool Hand Used Hydraulic Rubber Hose Crimping Machine for Sale





Hydraulic hose crimping machine Application


E51 hose crimping machine is ideal for crimping 51mm 4spiral hose.

Digital touch screen operation panel, simple operation and high accuracy.

With large working stroke, even elbow fitting can be crimped.Finn power style hose crimper.

All parts are imported from famous brand,durable operating performance.

With quick change tool, that will definately release your hands and imporve your working effieiceny.

With dies rack, dies could be kept and picked up or equipped very quickly.

Company Profile

CE High Performance 1/4 - 1 Inch Light Weight 6-25mm Portable Manual Pipe Pressing Tool Hand Used Hydraulic Rubber Hose Crimping Machine for Sale

CE High Performance 1/4 - 1 Inch Light Weight 6-25mm Portable Manual Pipe Pressing Tool Hand Used Hydraulic Rubber Hose Crimping Machine for Sale
-Our factory has 20 years of production experience and 8 years experience of export.

-In the long term foreign trade business practice,we have a good business reputation,smooth public relations,experienced personnel and rich information channels.
CE High Performance 1/4 - 1 Inch Light Weight 6-25mm Portable Manual Pipe Pressing Tool Hand Used Hydraulic Rubber Hose Crimping Machine for Sale
CE High Performance 1/4 - 1 Inch Light Weight 6-25mm Portable Manual Pipe Pressing Tool Hand Used Hydraulic Rubber Hose Crimping Machine for Sale
CE High Performance 1/4 - 1 Inch Light Weight 6-25mm Portable Manual Pipe Pressing Tool Hand Used Hydraulic Rubber Hose Crimping Machine for Sale



Production Show



CE High Performance 1/4 - 1 Inch Light Weight 6-25mm Portable Manual Pipe Pressing Tool Hand Used Hydraulic Rubber Hose Crimping Machine for Sale

Certifications



CE High Performance 1/4 - 1 Inch Light Weight 6-25mm Portable Manual Pipe Pressing Tool Hand Used Hydraulic Rubber Hose Crimping Machine for Sale
CE certificate .Verified by world-leading inspection company TUV Rheinland.


Customers and Reviews

CE High Performance 1/4 - 1 Inch Light Weight 6-25mm Portable Manual Pipe Pressing Tool Hand Used Hydraulic Rubber Hose Crimping Machine for SaleCE High Performance 1/4 - 1 Inch Light Weight 6-25mm Portable Manual Pipe Pressing Tool Hand Used Hydraulic Rubber Hose Crimping Machine for SaleCE High Performance 1/4 - 1 Inch Light Weight 6-25mm Portable Manual Pipe Pressing Tool Hand Used Hydraulic Rubber Hose Crimping Machine for Sale

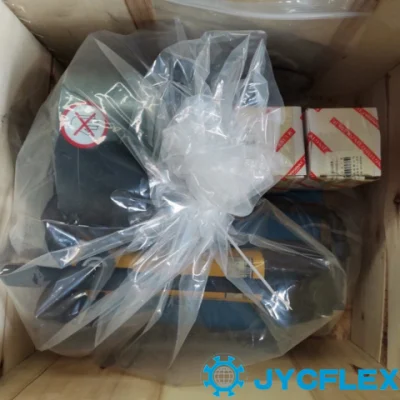

Packaging & Shipping



CE High Performance 1/4 - 1 Inch Light Weight 6-25mm Portable Manual Pipe Pressing Tool Hand Used Hydraulic Rubber Hose Crimping Machine for Sale
CE High Performance 1/4 - 1 Inch Light Weight 6-25mm Portable Manual Pipe Pressing Tool Hand Used Hydraulic Rubber Hose Crimping Machine for Sale



CE High Performance 1/4 - 1 Inch Light Weight 6-25mm Portable Manual Pipe Pressing Tool Hand Used Hydraulic Rubber Hose Crimping Machine for Sale
CE High Performance 1/4 - 1 Inch Light Weight 6-25mm Portable Manual Pipe Pressing Tool Hand Used Hydraulic Rubber Hose Crimping Machine for Sale


CE High Performance 1/4 - 1 Inch Light Weight 6-25mm Portable Manual Pipe Pressing Tool Hand Used Hydraulic Rubber Hose Crimping Machine for Sale

FAQ



Q1 : Are you factory ?
A1: Yes, We are factory direct sales, can also provide CE certificate.

Q2:Do you have the machine in stock?
A2: We usually keep the machine in stock, please kindly tell me which model you want,we will provide you more detail information.

Q3:Could you customize the voltage?
A3: Yes,we can customize the voltage ,we have experience customize on 230V 240V 400V 415V and 110V, if you want customize the voltage,please contact me.

Q4: How about the warranty?
A4: Firstly our machines have 3 years warranty time,its long term warranty for this kind machine;Then we very confident that if you crimp the hose/fitting within its ability and operate right way,the machine would not work wrong; If your machine cann''t work,please contact us,we will help you fix it or send you some spares.

Q5 : Could you customize dies molds?
A5 : Yes,we are very experience on customize dies, suck like for air conditioning,brake hose and so on. We could customize the dies pattern or dies number regarding your requirement.

Q6:Does the machine operate easily?
A6: Yes, We complete testing each machine before send,no need anymore adjust,we package installation instructions and use tip for each machine,we also could provide the operate video.

Q7:Can you produce product with my own brand?
A7. Yes, it''s available except famous brand which are not allowed.

Q8:Could you customize color for me?
A8: Yes,we can customize the color regarding your requirement.
