CNC Automatic  Hydraulic Tower Angle High Speed Drilling Marking  Machine

Get the best quality CNC Automatic Hydraulic Tower Angle High Speed Drilling Marking Machine from our factory. Buy now for efficient and accurate results.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
ADM3635
Numerical Control
CNC/MNC
Processing Precision
0.2
Performance Classification
High-End CNC Machine Tools
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Weight
34T
Rang of Drilling Diameter
17.5mm-40mm
Angle size(mm)
140*140*10 ~ 360*360*35mm
Range of Stadia(mm)
50-330mm
Spindle Taper
BT40
Rotation Speed of Spindle(r/min)
180-3000r/Min
Marking Force
1200kN
The Quantity of Drilling Cow Per Side
Arbitrary
Quantity of Drilling Spindle Per-Side
3
Quantity of Character Group
1
AC Voltage
380V
Motor Power of Drilling Spindle (KW)
2*15KW
Max Length of Workpiece (m)
12
Angle Steel Feed Speed
40 m/min
Quantity of CNC Axis
9
Transport Package
Container
Specification
40GP
Trademark
FIN CNC
Origin
China
HS Code
8462411900
Production Capacity
20

Product Description

CNC Automatic  Hydraulic Tower Angle High Speed Drilling Marking  Machine 140mm*140mm*10mm-360mm*360mm*35mm
CNC Automatic Hydraulic Tower Angle High Speed Drilling Marking Machine
Product Description:
Angle drilling shearing  and marking machine.

Applicable Industry:

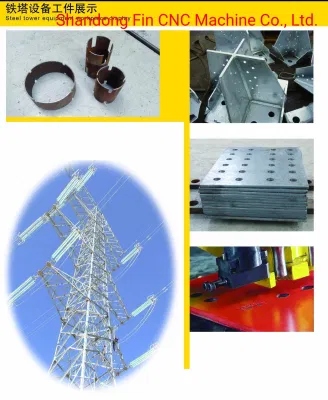

The machine is the special equipment used for angle steel drilling  marking &shearing mainly in the field of angle steel tower industry.

Technical Specification:


Angle size(mm) 140×140×10 ~ 360×360×35
Range of stadia(mm) 50 ~ 330(stepless)
The quantity of drilling cow per side arbitrariness
Quantity of drilling spindle per side 3
Range of drilling diameter(hard metal)(mm) φ17.5 ~ φ40
Motor power of drilling spindle (KW) 2×15
Rotation speed of spindle(r/min) 180 ~ 3000(stepless adjustment)
Spindle feeding speed(m/min) 0~ 10
Quantity of CNC axis 9
Max length of workpiece (m) 12
Angle feeding speed (m/min) 40
Quantity of character group 1 group
Spindle taper BT40
Nominal marking force:                                        1200KN

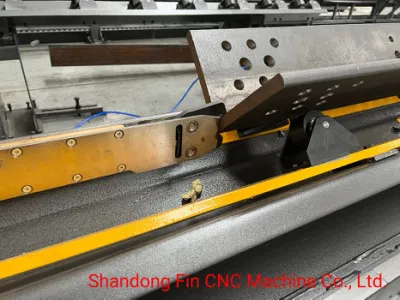

  1. The finished angle conveyor is rotated to one side by pneumatic power, the max length of finished angle is12m.
  2. There are four sets of transverse conveyor, infeeding automatically and intermittently.
  3. Type of programming: keyboard input, USB interface input, floppy disc input.
  4. Layout: A or B
  5. Working environment:                                                                                                                                                          Working temperature:  0ºC~ 40ºC
  6. Power: Three phase four wire systems
  7. AC Voltage:  380V
  8. Fluctuation of voltage:  ±10%
  9. Frequency:  50 Hz ±1

Company feature:

    1.The are three groups of drilling spindles on each side of drilling unit,which can install three kinds of drills with diffirent diameter .Each side of drilling spindles can move altogether by CNC to change the drilling stadia .


CNC Automatic Hydraulic Tower Angle High Speed Drilling Marking Machine

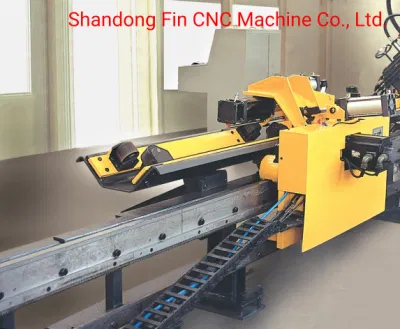

    2.CNC drilling head sdopt two linear guides to derecting,driven by AC servo motot and precision ball screw.It adopt the precision spindle (inner water cooling  ),with butterfiy spring automatic and hydraulic cylinder to loosen the knife;It"s very convenient to replace the shank..
CNC Automatic Hydraulic Tower Angle High Speed Drilling Marking Machine

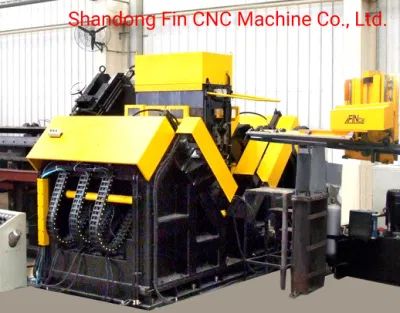

     3.The marking unit adopt  closed frame with stronger rigidity .marking stadia can bi ser at will.

CNC Automatic Hydraulic Tower Angle High Speed Drilling Marking Machine


    4,CNC feeding trolly is drive by AC servo motor .The photoelectric encorder feeds back the information. Closed loop control to ensure positioning accuracy.

CNC Automatic Hydraulic Tower Angle High Speed Drilling Marking Machine


    5.Hydraulic system is used to complete clamping workpiece crimping of drilling spindles ,hydraulic balance of drilling head and marking.

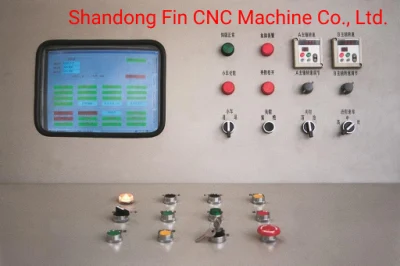

    6.The control system consists of a host computer ,CNC system,servo motor,PLC and  detection switch etc. .Only to input the drawing workpeice, the processing program is automatically generated
;

Our company:

    Shandong FIN CNC MACHINE CO., LTD. is always focusing on our ultimate goal - to secure and increase our customer's productivity - has made us the leader in China market in the manufacture of machines for processing angle bar, beam channel profiles, steel plates, tubesheet and flanges, mainly serving for fabricating iron towers, steel structure, heat exchangers, boilers, bridges, and trucks.Strong R & D center with 30 engineers team, 24 years of experience from year 1997, 280 staff, plant area about 270,000 sqm., very harsh quality control of every component and the whole machine, about 40 million US dollars sales turnover per year.
    FIN CNC machines' market share in China is around 70% and exported to 50+ countries across globe market. All top ranked tower manufacturers, steel structure fabricators and power station makers, bridge/railway manufacturers, truck makers are our clients.
    Main products: CNC Angle Line, CNC Beam Drilling Sawing Machine, CNC Plate Drilling Machine, CNC Rail Processing Machine, CNC Tubesheet Flange Drilling Machine, Truck beam plate punching machine, etc..One measure of the outstanding quality of our machines is their longevity: many FIN machines have been in operation for more than 17 years! Many clients are continually placing repeated orders which verified well our machines' perfect quality and reliable performance.
    The company drafted many China national standards for CNC angle line machine and CNC beam drilling sawing machine and CNC plate drilling machine.
CNC Automatic Hydraulic Tower Angle High Speed Drilling Marking Machine


CNC Automatic Hydraulic Tower Angle High Speed Drilling Marking Machine


CNC Automatic Hydraulic Tower Angle High Speed Drilling Marking Machine


CNC Automatic Hydraulic Tower Angle High Speed Drilling Marking Machine

CNC Automatic Hydraulic Tower Angle High Speed Drilling Marking Machine

CNC Automatic Hydraulic Tower Angle High Speed Drilling Marking Machine


CNC Automatic Hydraulic Tower Angle High Speed Drilling Marking Machine

FAQ:

1. When can you arrange shipment?

    For machines available in stock, the shipment can be arranged within 15 days after getting advance payment or L/C;
    For machines non available in stock, the shipment can be arranged with 60 days after getting advance payment or L/C.

2. What can you do if my machines have problems?

    1) We can send you free components if machines are in warranty period;
    2) 24 hours service on line;
    3) We can assign our engineers to serve you if you want.

3. Do you provide machine operation training?

    Yes. We can send professional engineers to the working site for machine's installation, commissioning and operation training.

4. Which machine model shall I choose when I purchase from you?

    Please share us your material size and your processing request, then we will recommend our machine most suitable and most cost effective for your work demand.

5. What's your machine's market share in China?

    Our market share in China is about 70%+, and we've exported to 50+ countries across the globe market, since year 1998.
