Hot Sale 1/8-2′′ Fitting Ferrule Crimper Hydraulic Press Hose Crimping Tool

Get your Hot Sale 1/8-2" Fitting Ferrule Crimper Hydraulic Press Hose Crimping Tool directly from the factory. High-quality and reliable tool for all your hydraulic pressing needs.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Feature
  • Product Description
  • Product Application
  • Customer Feedback
  • Company Profile
  • Our service
  • Certifications
Overview

Basic Info.

Model NO.
JYC-P20
Condition
New
Customized
Customized
Automatic Grade
Automatic
Structure
Horizontal
Product Name
P20 Hose Crimping Machine
Crimping Range
1/4" to 1.5"
Ruler Precision
0.01mm
Power&Voltage
3kw;220V, 240V, 380V, 415V
Weight
210kg
Crimping Force
3200kn
Die Set
8 Sets
Transport Package
Wooden Case or as Buyer Required
Specification
450*630*600mm
Trademark
JYCFLEX
Origin
Weifang, China
HS Code
8412210000
Production Capacity
40000 Pieces/Year

Packaging & Delivery

Package Size
63.00cm * 45.00cm * 60.00cm
Package Gross Weight
210.000kg

Product Description

Hot Sale 1/8-2′′ Fitting Ferrule Crimper Hydraulic Press Hose Crimping Tool

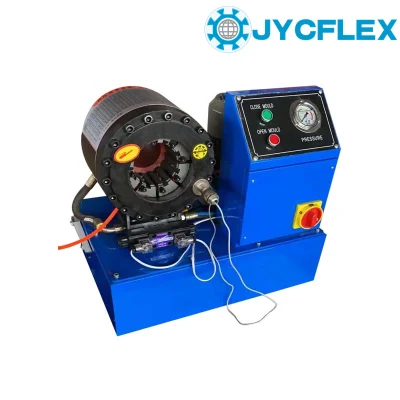

JYC-P20 Hydraulic Hose Crimping Machine

This hose crimping machine can crimp inner diameter from 1/4" up to 1-1/2'' 1-4 steel wire hydraulic hoses, up to 1.5inch 4wire hoses each time.

JYC-P20 is automatic machine, including 8 sets of dies, 3KW motor power, dies locker and foot pedal.


Product Feature


High Efficiency                                      High Precision                                      Good Product Consistency

Low labor Intensity                              Good Management                                Simple In Operation

Hot Sale 1/8-2′′ Fitting Ferrule Crimper Hydraulic Press Hose Crimping Tool
Hot Sale 1/8-2′′ Fitting Ferrule Crimper Hydraulic Press Hose Crimping Tool



Product Description
SPECIFICATIONS FOR HYDRAULIC HOSE CRIMPING MACHINE
Production name hose crimping machine Machine model JYC-P20
Machine type hydraulic crimping tool Application crimping hose
Crimping range 6-38mm(1/4--1-1/2 inch) System pressure 31.5Mpa
Crimping force  3200KN Operation mode electrical
Dies set 8sets Die length 70mm
Dimension 450*630*600mm Weight 210kg
Voltage 220V/380V Power 3KW/4KW
Rated Flow 10ml/r Prodection Class IP54
Hot Sale 1/8-2′′ Fitting Ferrule Crimper Hydraulic Press Hose Crimping Tool
Mould dies

Dies set with hardness of 59-63 HRC.
No deformation after long time use.
Micrometer

Rotary positioning
Scale adjustment
High precison
Hot Sale 1/8-2′′ Fitting Ferrule Crimper Hydraulic Press Hose Crimping Tool
Hot Sale 1/8-2′′ Fitting Ferrule Crimper Hydraulic Press Hose Crimping Tool
Simple design panel

Easy to operate crimping even for new user.
Pedal switch

Safe and stable, flexible and convenient, free to move when processing long  materials, saving time and releasing hands.
Hot Sale 1/8-2′′ Fitting Ferrule Crimper Hydraulic Press Hose Crimping Tool







Hot Sale 1/8-2′′ Fitting Ferrule Crimper Hydraulic Press Hose Crimping Tool
1)
P20 hydraulic hose crimping machine is ideal for crimping 38mm 4spiral hose.Equipped with a foot pedal, making the crimping easier to control,and very convenient for free hand operate.


2) The buttons are on the right side, convenient to control the whole crimping work and see the whole crimping progress.

3) With large working stroke, even elbow fitting can be crimped.Finn power style hose crimper.



4) Die sets use high hardness special mould steel, under normal use, the die sets can be used for more than 10 years without problem.


5) This hydraulic hose crimper features small and portable appearance, big force, low noise and easy to operate.



Hot Sale 1/8-2′′ Fitting Ferrule Crimper Hydraulic Press Hose Crimping Tool

Product Application

Hot Sale 1/8-2′′ Fitting Ferrule Crimper Hydraulic Press Hose Crimping Tool

Customer Feedback
Hot Sale 1/8-2′′ Fitting Ferrule Crimper Hydraulic Press Hose Crimping Tool
Hot Sale 1/8-2′′ Fitting Ferrule Crimper Hydraulic Press Hose Crimping Tool
Hot Sale 1/8-2′′ Fitting Ferrule Crimper Hydraulic Press Hose Crimping Tool

Hot Sale 1/8-2′′ Fitting Ferrule Crimper Hydraulic Press Hose Crimping ToolHot Sale 1/8-2′′ Fitting Ferrule Crimper Hydraulic Press Hose Crimping Tool

Company Profile

Hot Sale 1/8-2′′ Fitting Ferrule Crimper Hydraulic Press Hose Crimping Tool
Hot Sale 1/8-2′′ Fitting Ferrule Crimper Hydraulic Press Hose Crimping ToolHot Sale 1/8-2′′ Fitting Ferrule Crimper Hydraulic Press Hose Crimping Tool

Our service
Hot Sale 1/8-2′′ Fitting Ferrule Crimper Hydraulic Press Hose Crimping Tool

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.



After-Sales Service

*24x7 service
* Training how to install and use the machine
* Engineers available to service machinery overseas.


Hot Sale 1/8-2′′ Fitting Ferrule Crimper Hydraulic Press Hose Crimping Tool
Certifications

Hot Sale 1/8-2′′ Fitting Ferrule Crimper Hydraulic Press Hose Crimping Tool

FAQ:

1.Question:What Certificates do you have ?
   Answer:CE,ISO

2.Question:What is the MOQ?

   Answer:1 set for you test.

3.Question:What is the delivery time?

   Answer:The machines are all in stock now, that can be delivered as you need.

4.Question:What is the payment?

   Answer:We recommend T/T in advance, as most of our crimping machine model are in stock.
   L/C,western union,paypal and money gram also can be accepted.

5.Question:Can you make customized designs or LOGO?

   Answer:Sure, we could customize the color,logo and so on as your request.
