Jcw-2ta Copper Belt Crimping Machine Copper Cord End Terminal Taping Tool

Get the Jcw-2ta Copper Belt Crimping Machine Copper Cord End Terminal Taping Tool from our factory. High-quality, durable equipment for all your crimping needs.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Parameters
  • Product Description
  • Related Product
  • Certifications
  • Packaging & Shipping
  • Company Profile
  • FAQ
Overview

Basic Info.

Model NO.
JCW-2TA
Condition
New
Certification
CCC, PSE, FDA, RoHS, ISO, CE
Warranty
12 Months
Automatic Grade
Semiautomatic
Installation
Vertical
Driven Type
Electric
Mould Life
>1,000,000 Shots
Place of Origin
Shandong, China
Brand Name
Jcwelec
Model Number
Jcw-2ta
Crimp Force
30kn(3tons)
Stroke
28mm
Splicebang
2/4/6/8mm in Width,0.3/0.4mm in Thickness
Activation
Foot Pedal
Functions
Spliceband Splicing Machine
Rated Power
750W
Power Supply
AC 220V, 50/60Hz
Dimension
280X380X470mm
Weight
57kg
Packaging Details
Wooden Case and According Your Requirements
Supply Ability
1000 Piece/Pieces Per Month
OEM
Yes
Transport Package
Cartoon
Specification
400x400x800mm
Trademark
JCW
Origin
China
HS Code
8479819000
Production Capacity
200 Piece/Pieces Per Month

Packaging & Delivery

Package Size
28.00cm * 38.00cm * 47.00cm
Package Gross Weight
57.000kg

Product Description




Product Parameters

Usage Crimping
Place of Origin Shandong, China
Brand Name JCWelec
Model Number JCW-2TA
Function Various splice band material,interchangeable toolsets,motorized splice bang feeder
Crimp force 30KN(3tons)
Dimension 280x380x470mm
Weight 57kg
Activation Foot padal
Packaging Details Wooden case and according your requirements
Port Qingdao/Shanghai/Guangzhou

Product Description

Motorized feeding material
Cut,form,splice copper strip in one work step.Instead of traditional solder.
Various copper strip size,2-03,2-04,4-03,4-04,etc

Jcw-2ta Copper Belt Crimping Machine Copper Cord End Terminal Taping Tool

Widely apply to wire to neon light,resistance to LED,switch to conductor,etc.

New style splicing machine,take the place of traditional solder machine,no air pollution,more robust connection.


Jcw-2ta Copper Belt Crimping Machine Copper Cord End Terminal Taping Tool
Jcw-2ta Copper Belt Crimping Machine Copper Cord End Terminal Taping Tool
Jcw-2ta Copper Belt Crimping Machine Copper Cord End Terminal Taping Tool

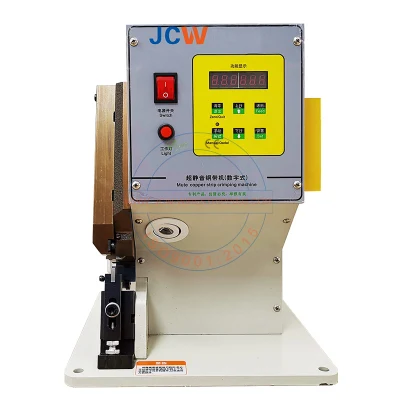

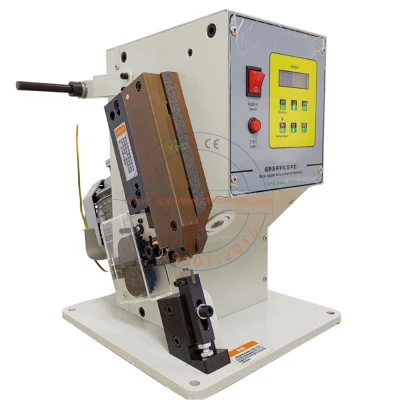

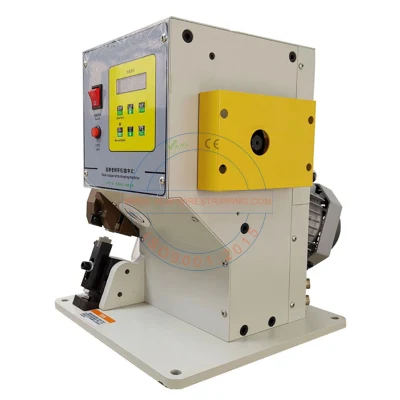

New design,motorized belt feeding system,accurate feeding
Copper belt of different dimensions,various width and thickness,apply to wires of different cross-section.


JCW-2TA Electric Copper Tape Splicing Machine [ motorized feeding ]Strong connection, vast applications, lowest applied cost, no scrapped material
Advantage of splice technology


The splicing technology is widely used in automotive, consumer, medica, and industrial electronics manufacturers. t ofers reliable, efficient, andeconomical interconnection, which has obvious advantages ike aas-ight, waste-free, repeatable and low resistance
Meet highest quality requirements


1. Gas tight connection
2. No cold solder ioint
3. No head impact to the components
4. No stiffening to the wire
5.Fxtremely low electrical resistance
6.Resistant aaainst vibrations and shocks
7.Resistant aqainst corrosion
8.Space-saving


Huge benefits,multiple applications
The JCW-2TA splice band crimping machine is a brand new model that utlizes an electrical splice band feeder, the splice band will be fed preciselBy fast tooling change, this spice band crimping machine is compatible with virtually all wire and cable types, numerous splice band materials, andsizes,
The machine's ability to feed, cut,form, and crimp eliminate the need for expensive pre-formed crimps, providing a stronger connection than soldeand much faster than welding


Multiple splice applications
Wire to PCB connections. used in electronic devices
D-BlT power jumper, multi-wire to PCB, provides low profile connection 3-post micro switch,used in automotive applications. replace soldering

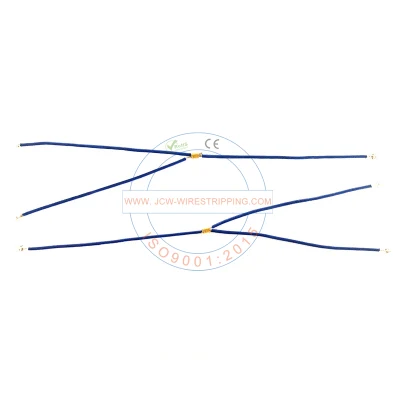

Multi-component splice, parallel circuit
Multi-component jumper splice
Sensor for utility meters

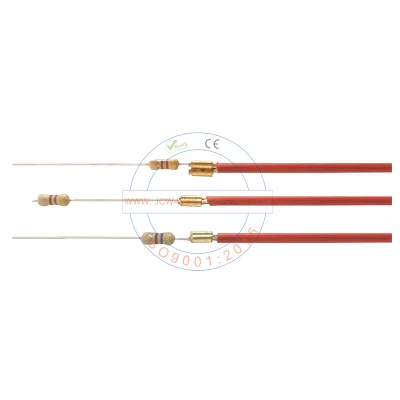

Tungsten wire lead, used in UV light
Multi-component series splice
Textiles, fiberglass, plastics
