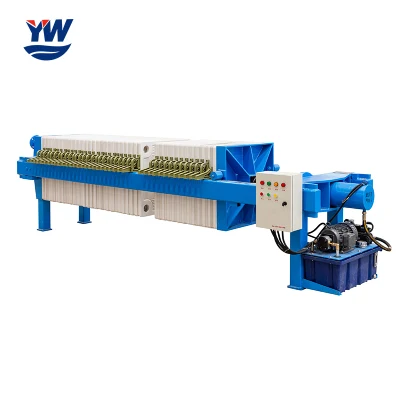

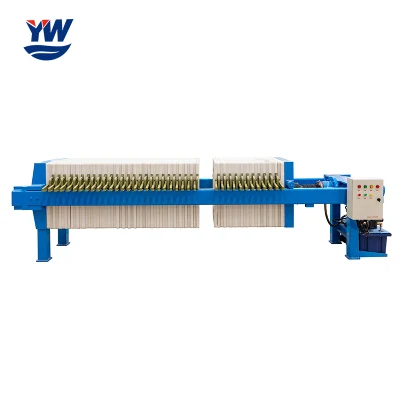

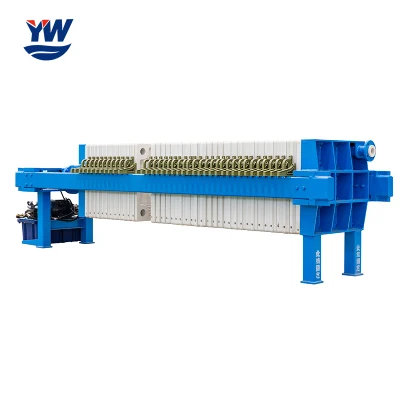

Semi Automatic Hydraulic Plate and Frame Filter Press for Oil, Beverage, Beer, Wine

Looking for a Semi Automatic Hydraulic Plate and Frame Filter Press for Oil, Beverage, Beer, Wine? Look no further! We are a factory specializing in high-quality filtration equipment.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Type
Plate Filter Press
Filtration Pressure
0.6 MPa
Drip Tray
Optional
Control
PLC
Plate Shift
Manual
Conveyor
Optional
Filter Press Type1
Chamber Filter Press
Filter Press Type2
Membrane Filter Press
Filter Press Type3
Plate and Frame Filter Press
Beam Material
Carbon Steel / PP Coated / Stainless Steel
Application 1
Filter Press for Sewage Treatment
Application 2
Filter Press for Sludge Dewatering
Application 3
Filter Press for Sugar Syrup
Application 4
Filter Press for Municipal Wastewater Treatment
Application 5
Filter Press for Food Industry
Application 6
Filter Press for Wine Industry
Transport Package
Wooden Case/ Bubble Wrap
Specification
450-890
Trademark
Yuwei
Origin
China, Henan, Yuzhou
HS Code
842129109
Production Capacity
6000 Units /Year

Packaging & Delivery

Package Size
656.00cm * 138.00cm * 125.00cm
Package Gross Weight
3000.000kg

Product Description

Fully Automatic Stainless steel Coated Beam Chamber Plate Filter Press For Wastewater Treatment
Description of Plate & Frame Filter Press

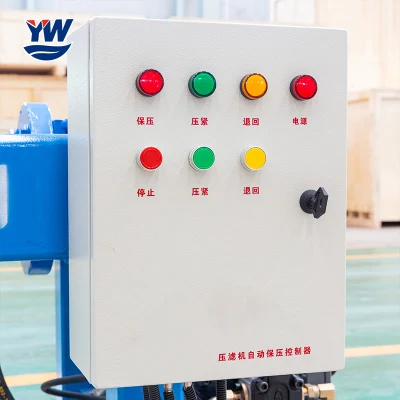

The hydraulic chamber filter press uses an electric contact pressure gauge to automatically maintain the pressure value during the working process. During the pressure filtration process, the pressure of the whole equipment is relatively constant, so as to prevent the leakage of slurry and ensure good filtration effect.
Semi Automatic Hydraulic Plate and Frame Filter Press for Oil, Beverage, Beer, Wine


Specification of Plate & Frame Filter Press

Model Filter Area Plate size Volume Plate QTY Frame Qty Filtrtion Pressure Motor Power Weight Dimensions
BY4/450-30U 4m² 500×500mm 60L 9pcs 10pcs ≤0.5MPa 2.2Kw 860Kg 208×80×90cm
BY6/450-30U 6m² 91L 14pcs 15pcs 910Kg 238×80×90cm
BY8/450-30U 8m² 121L 19pcs 20pcs 960Kg 268×80×90cm
BY10/450-30U 10m² 151L 24pcs 25pcs 1010Kg 298×80×90cm
BY12/450-30U 12m² 182L 29pcs 30pcs 1060Kg 328×80×90cm
BY15/450-30U 15m² 225L 36pcs 37pcs 1130Kg 370×80×90cm
BY16/450-30U 16m² 243L 39pcs 40pcs 1160Kg 388×80×90cm
BY15/630-30U 15m² 700×700mm 226L 18pcs 19pcs ≤0.5MPa 2.2Kw 1725Kg 284×100×106cm
BY20/630-30U 20m² 297L 24pcs 25pcs 1993Kg 320×100×106cm
BY30/630-30U 30m² 452L 37pcs 38pcs 2360Kg 398×100×106cm
BY40/630-30U 40m² 595L 49pcs 50pcs 2788Kg 480×100×106cm
BY30/890-35U 30m² 890×890mm 524L 23pcs 24pcs ≤0.5MPa 2.2Kw 2580Kg 374×138×125cm
BY40/890-35U 40m² 677L 30pcs 31pcs 2925Kg 422×138×125cm
BY50/890-35U 50m² 852L 38pcs 39pcs 3318Kg 488×138×125cm
BY60/890-35U 60m² 1027L 46pcs 47pcs 3712Kg 544×138×125cm
BY70/890-35U 70m² 1201L 54pcs 55pcs 4106Kg 600×138×125cm
BY80/890-35U 80m² 1376L 62pcs 63pcs 4561Kg 656×138×125cm


Case

Semi Automatic Hydraulic Plate and Frame Filter Press for Oil, Beverage, Beer, Wine

Plate & Frame Filter Press Cakes

Semi Automatic Hydraulic Plate and Frame Filter Press for Oil, Beverage, Beer, Wine
Related Products

Semi Automatic Hydraulic Plate and Frame Filter Press for Oil, Beverage, Beer, Wine
Semi Automatic Hydraulic Plate and Frame Filter Press for Oil, Beverage, Beer, Wine
Semi Automatic Hydraulic Plate and Frame Filter Press for Oil, Beverage, Beer, Wine
Semi Automatic Hydraulic Plate and Frame Filter Press for Oil, Beverage, Beer, Wine
Semi Automatic Hydraulic Plate and Frame Filter Press for Oil, Beverage, Beer, Wine
Semi Automatic Hydraulic Plate and Frame Filter Press for Oil, Beverage, Beer, Wine
Semi Automatic Hydraulic Plate and Frame Filter Press for Oil, Beverage, Beer, Wine
Semi Automatic Hydraulic Plate and Frame Filter Press for Oil, Beverage, Beer, Wine
Semi Automatic Hydraulic Plate and Frame Filter Press for Oil, Beverage, Beer, Wine
Semi Automatic Hydraulic Plate and Frame Filter Press for Oil, Beverage, Beer, Wine
Semi Automatic Hydraulic Plate and Frame Filter Press for Oil, Beverage, Beer, Wine
Semi Automatic Hydraulic Plate and Frame Filter Press for Oil, Beverage, Beer, Wine

Fully Automatic Stainless steel Coated Beam Chamber Plate Filter Press For Wastewater Treatment
About Us

Semi Automatic Hydraulic Plate and Frame Filter Press for Oil, Beverage, Beer, Wine
Yuwei Filter Equipment Co., Ltd.
is a filter supplier and engineering solution service provider integrating design, manufacturing, research and development, sales and international trade. The company is located at Yuzhou City Henan province in China, covering an area of 50 acres.

VIEW MORE

We have A wealth of project experience and can provide complete technical guidance and integrated installation services.

Contact Us



Workshop

Semi Automatic Hydraulic Plate and Frame Filter Press for Oil, Beverage, Beer, Wine


Warehouse

Semi Automatic Hydraulic Plate and Frame Filter Press for Oil, Beverage, Beer, Wine
Packing & Shipping

Semi Automatic Hydraulic Plate and Frame Filter Press for Oil, Beverage, Beer, Wine



FAQ

1. How long is the delivery time of your product?

The delivery time is within 30 working days. But when the crushing plant is big and the customers have special requirement on the crushing plant, the delivery could be extended.

2. What are the payment terms?
The payment term is T/T.

3. How long is the product warranty period?
Our warranty period is 1 year. Wearing parts and problem coursed by worker's wrong operation are not included.

4. What's the after sale service of your company?
We will provide foundation drawing to the clients for intallation. Besides, we can provide guidance service for installation and operation of workers, etc.

5. Can your company provide wearing parts?
We can produce wearing parts for our clients. If your equipment are not manufactured by our company, please provide us the wearing parts drawing.
