Shrink Tube Marking Insertion Heating Automatic Wire Stripping and Crimping Machine Wire Terminal Crimper

Get high quality Shrink Tube Marking Insertion Heating Automatic Wire Stripping and Crimping Machine Wire Terminal Crimper from our factory. Fast, efficient, and reliable solutions for all your wire terminal needs.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Company Profile
  • FAQ
Overview

Basic Info.

Model NO.
EW-8070
Cut Precision
(0.5+0.002*L) mm, L=Cut Length
Air Pressure
0.4-0.6MPa
Power
220V/110V/50/60Hz
Dimension
800*1400*1800mm
Weight
500kg
Trademark
EASTONTECH
HS Code
8479819000

Product Description

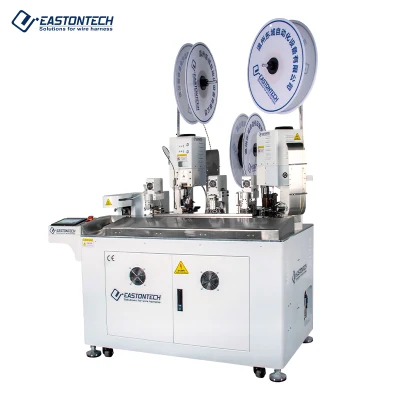

Shrink Tube Marking Insertion Heating Automatic Wire Stripping and Crimping Machine Wire Terminal CrimperShrink Tube Marking Insertion Heating Automatic Wire Stripping and Crimping Machine Wire Terminal Crimper
Features:

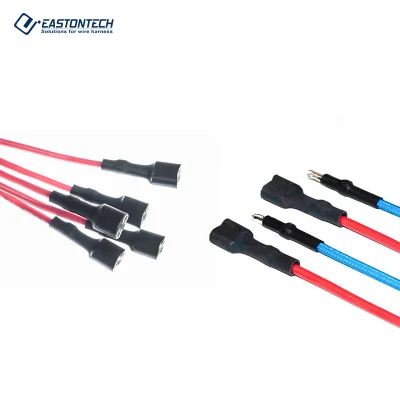

The wire is cut to size, both ends are stripped, single-ended and half-skinned, single-stranded single- and double-end crimped, automatically cut through the sleeve, automatically baked sleeve, all digital touch screen control.
Contact us for more details.

Model EW-8070
Applicable wire range AWG22-AWG14
Stripping length Front: 0.5-8mm; Rear: 0.1-10mm
Cut precision ±(0.5+0.002*L) mm, L=cut length
Cutting length 86-9999mm
Capacity 2000pcs/hour(L=80-100mm)
Crimping force 2.0T
Applicators 30mm or 40mm strokes for optional
Air pressure 0.5Mpa
Detection Wire run out, low air pressure, terminate error(Crimping force monitor is for optional)
Power 220V/110V/50/60HZ
Cutting depth The maximum adjustment is 5.50mm and the resolution is 0.01mm.
Shrinkage tube size 3.0-6.0mm Dia(12-18mm length)

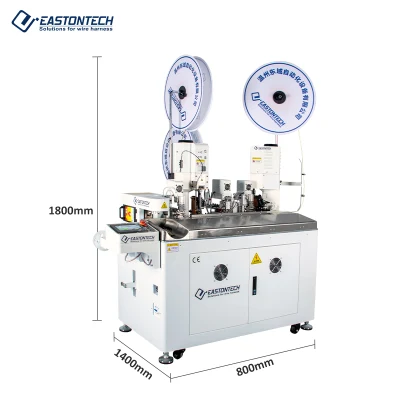

Dimension 800*1400*1800mm
Weight 500Kg
Power cord plug European, USA, Chinese plug
Shrink Tube Marking Insertion Heating Automatic Wire Stripping and Crimping Machine Wire Terminal Crimper Shrink Tube Marking Insertion Heating Automatic Wire Stripping and Crimping Machine Wire Terminal Crimper Shrink Tube Marking Insertion Heating Automatic Wire Stripping and Crimping Machine Wire Terminal Crimper

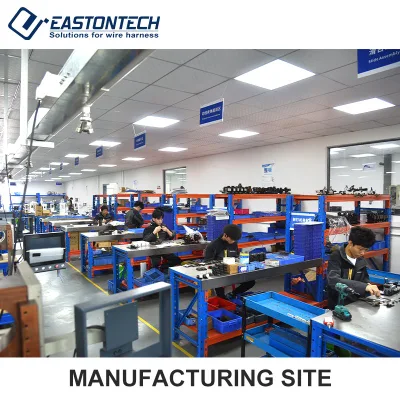

Company Profile

Shrink Tube Marking Insertion Heating Automatic Wire Stripping and Crimping Machine Wire Terminal CrimperShrink Tube Marking Insertion Heating Automatic Wire Stripping and Crimping Machine Wire Terminal CrimperShrink Tube Marking Insertion Heating Automatic Wire Stripping and Crimping Machine Wire Terminal CrimperShrink Tube Marking Insertion Heating Automatic Wire Stripping and Crimping Machine Wire Terminal Crimper

FAQ

Question 1: What machines does the EASTONTECH mainly produce?
Answer 1: We mainly produce machines for wire harness processing.

Question 2: What are the main functions of your wire harness processing machine?
Answer2: Our machine can complete cutting, stripping, crimping, tinning, soldering, binding&tying, etc.

Question 3: What's the packaging and shipping?
Answer3: Package: Standard export carton & wooden case.

Shipping:
By express: DHL, UPS, FedEx
We will search for the most economical and reliable shipping company to transport the goods safely.
By air: when your order is more than 100kg which will be more economical than express
By sea: when your order is a large quantity, we can help you to deliver the goods by sea
Port: Shanghai / Ningbo/ Shenzhen

Question 4: How about after-service?
Answer4: EASTONTECH parts are free to change if worn out within 1 year, provided the delivery fee is paid. Technical support is available during your daily maintenance.
We promise to offer life-long maintenance for the products we sold.
